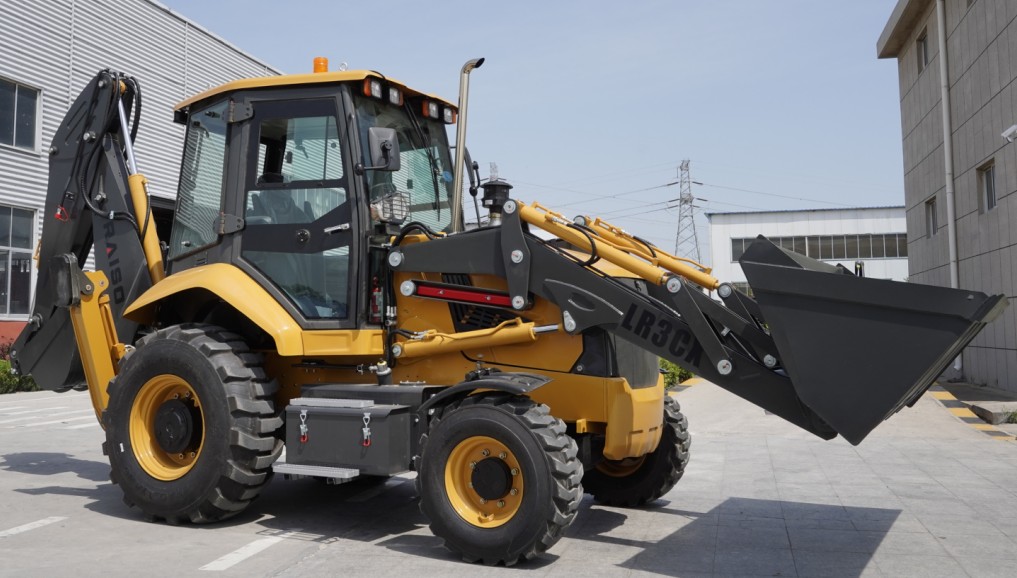

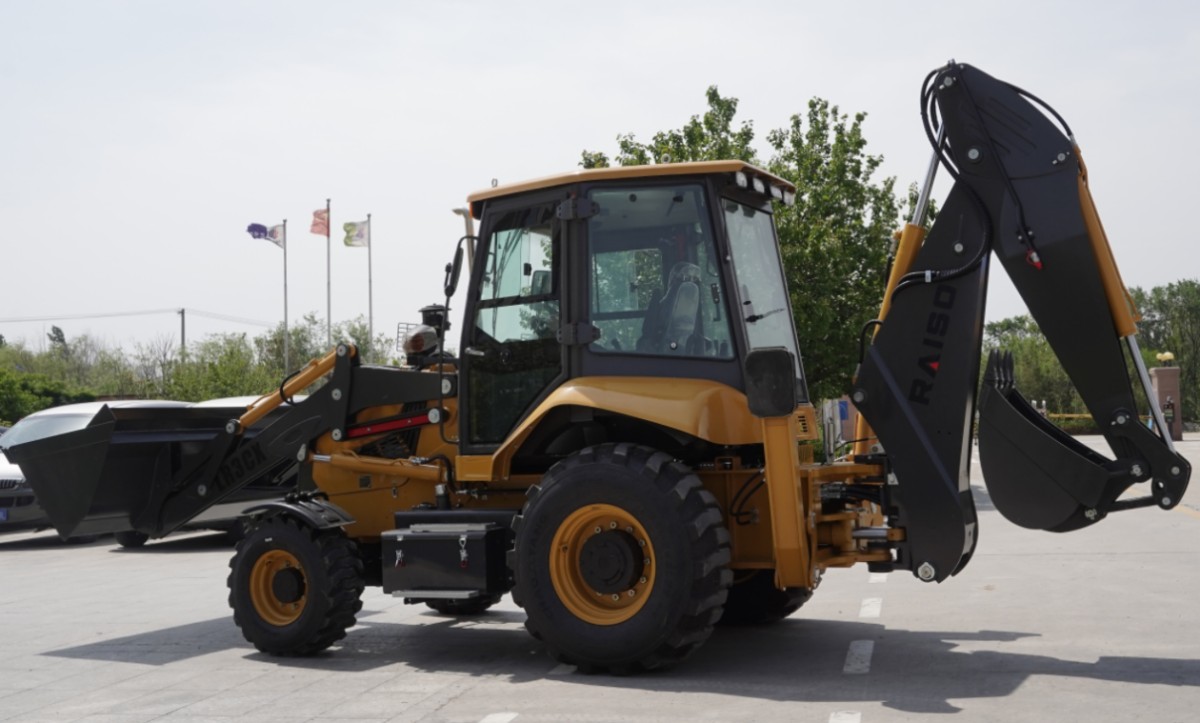

Single-side braking (or differential braking) in a backhoe loader refers to the ability to brake only one side's wheels while the other side remains free to move. Below are detailed insights into this feature.

Functions of Single-Side Braking

1.Steering Assistance – Helps achieve tighter turns in confined spaces or when a smaller turning radius is needed.

2. Slope Operations – Provides additional stability when working on inclines.

3. Specialized Tasks – Useful in certain digging or loading scenarios where one side needs to remain stationary.

Operation Method

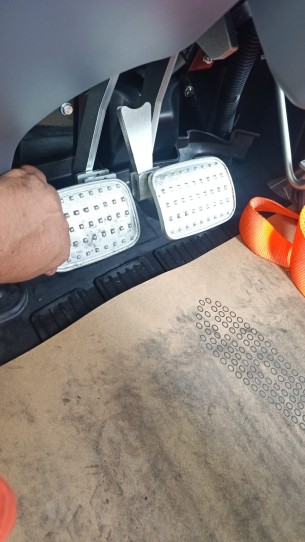

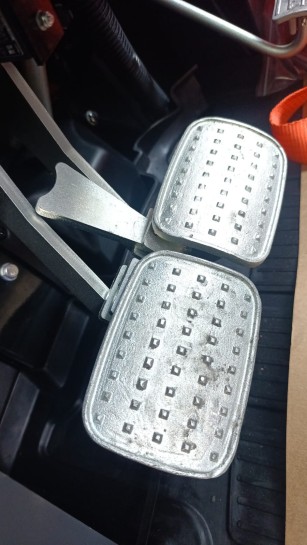

Typically controlled by separate left and right brake pedals.

Pressing the left pedal brakes the left wheels; pressing the right pedal brakes the right wheels.

Some models may require engaging the main brake pedal before applying single-side braking.

Attentions

Speed Limit – Avoid using single-side braking at high speeds, as it may cause loss of control.

Ground Conditions – Use cautiously on slippery or loose surfaces.

Tire Wear – Frequent use can lead to uneven tire wear on one side.

Oversteering – May result in sharper-than-expected turning angles.

Maintenance Tips

A.Regularly inspect hydraulic lines and brake pads for the single-side braking system.

B.Ensure balanced braking force on both sides.

C.Check brake fluid levels and quality periodically.
