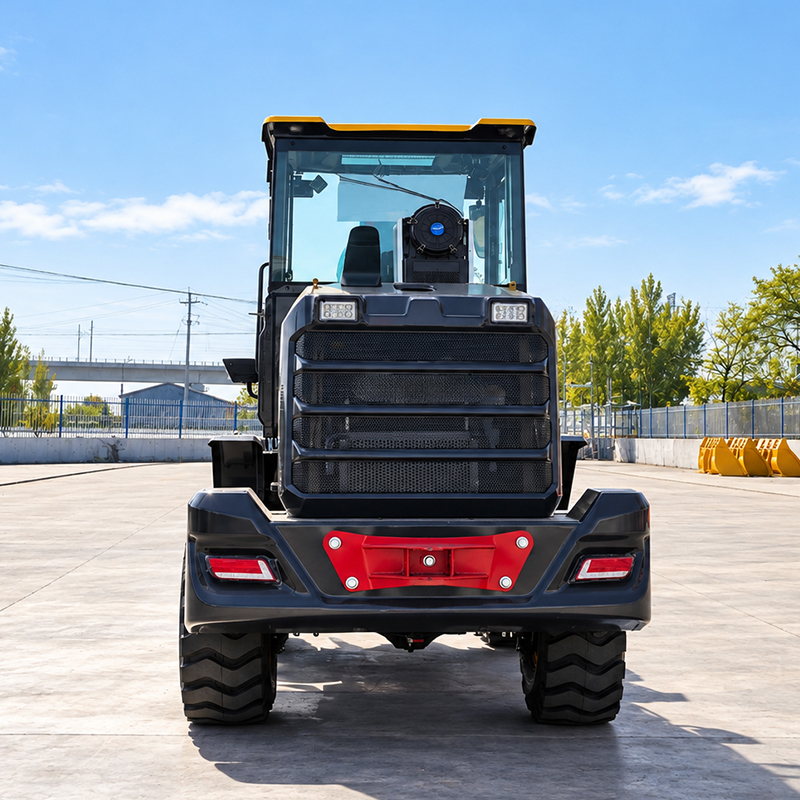

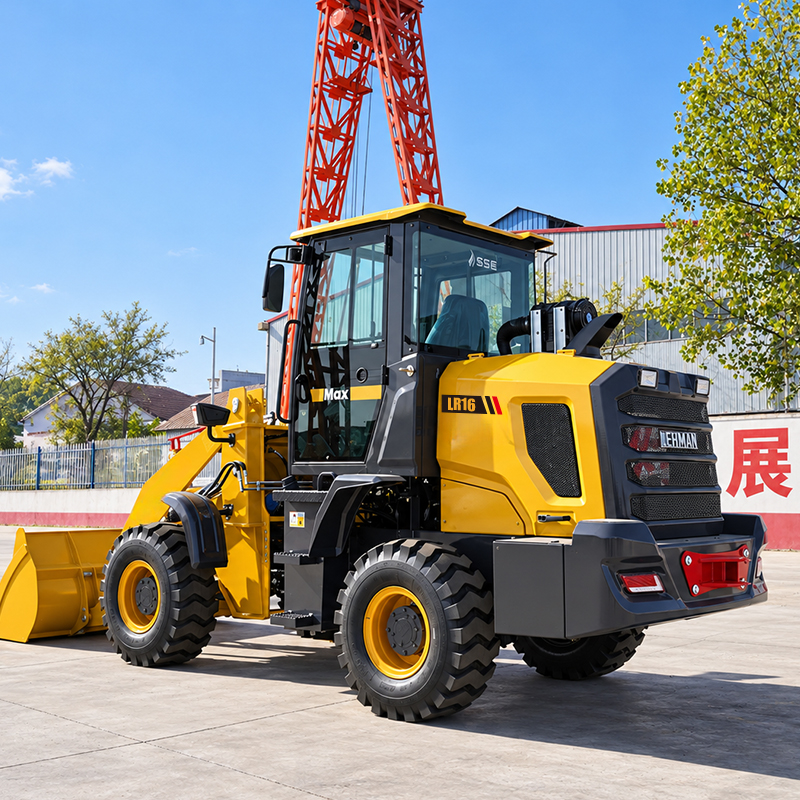

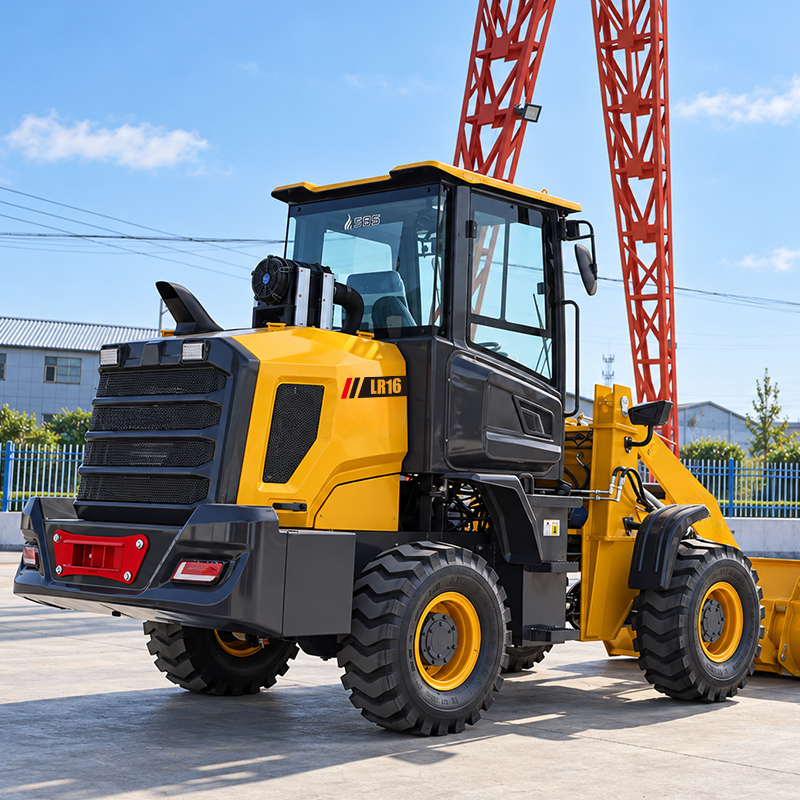

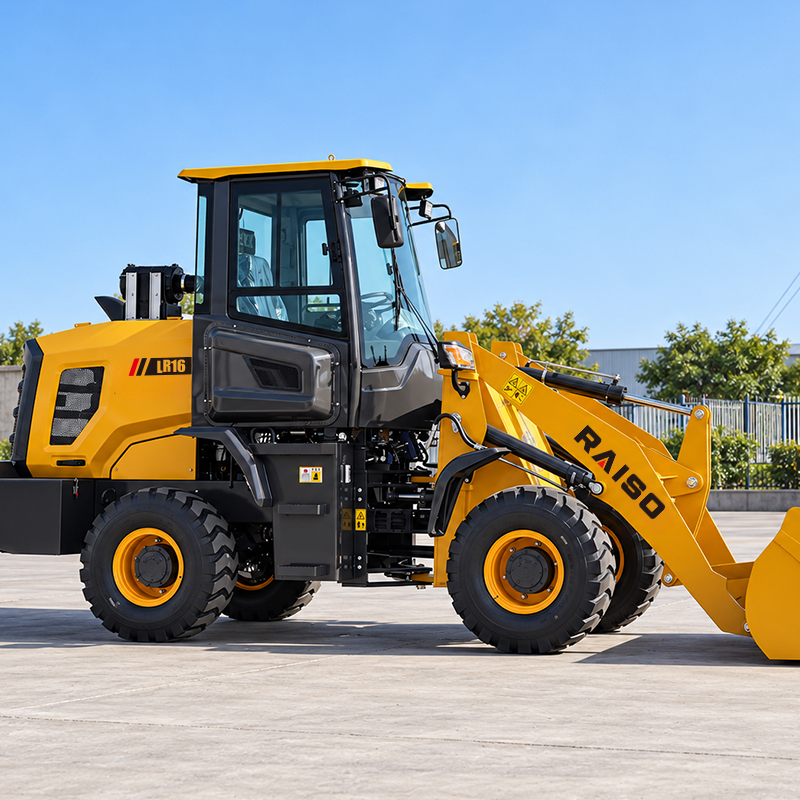

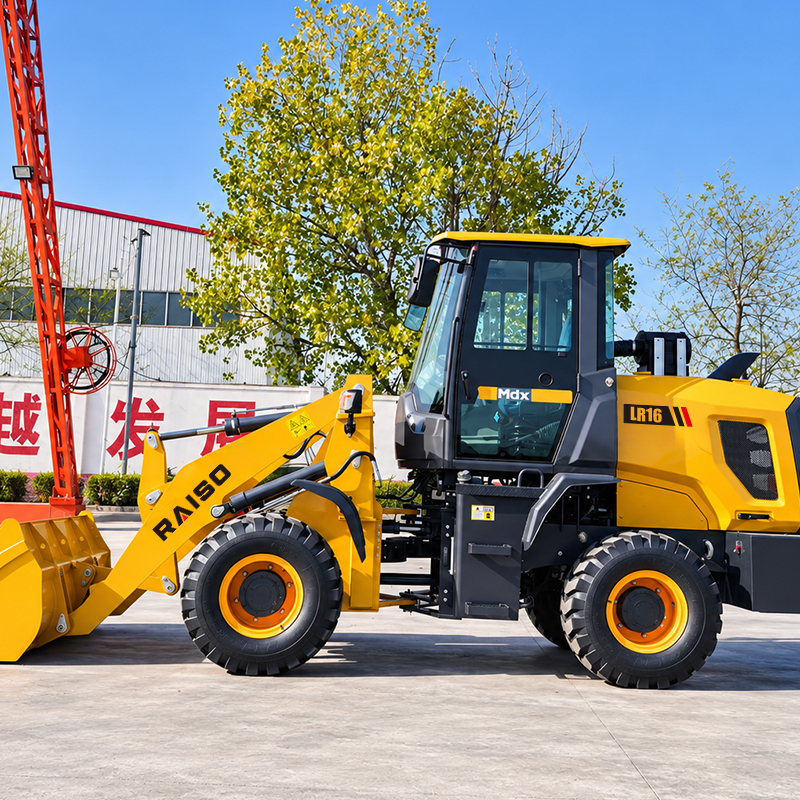

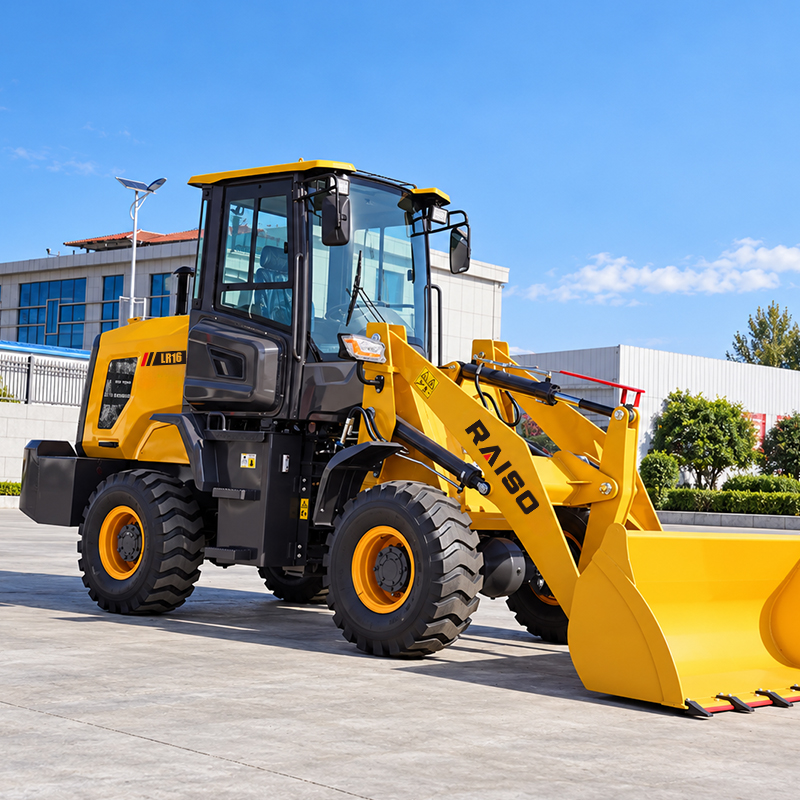

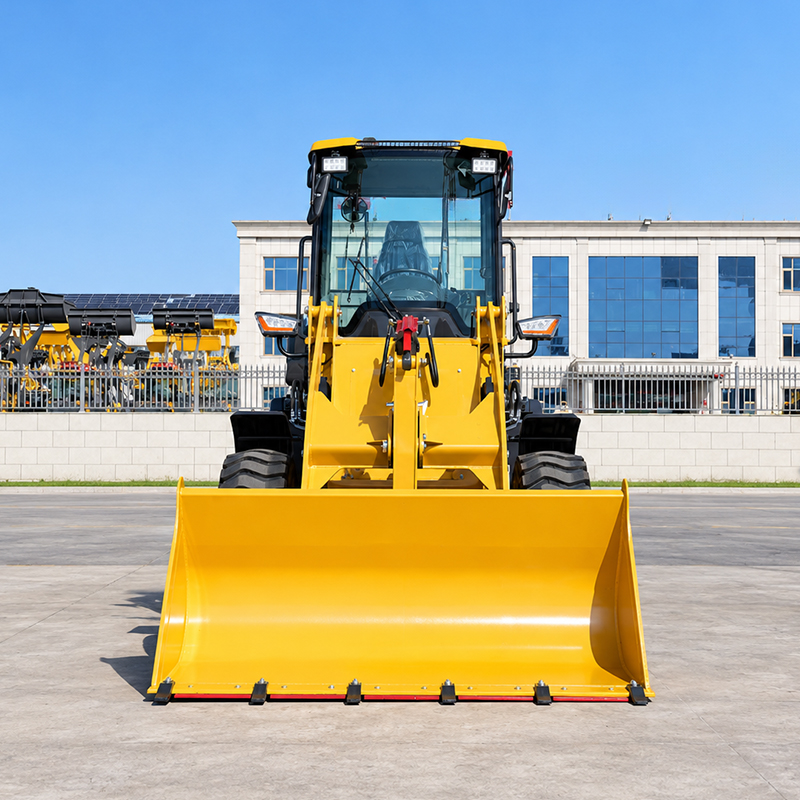

LR16

WHEEL LOADER

LR16

Rated Load

1500kg

Overall Dimension

5900*1860*2830mm

Engine Model

YUNNEI 490

Rated Power/speed

37kw


Production Introduction

1. Structure material: The main structural components, such as the boom and bucket, are made of high-strength materials like manganese steel, which are durable, wear-resistant, and deformation-resistant, capable of enduring the harsh working conditions underground.

2. Hydraulic system: Equipped self-developed cylinders, surface is chrome-plated for better smashing resistance. Customized pumps and Eaton’s valves, make the machine run smoothly and have a longer service life.

3. Transmission system: Equipped with high quality Chinese brand axle, stable performance, optional Hangzhou YD13 gear box to improve transmission performance.

4. Power system: Equipped with renowned engines ( Yuchai, Cummins, Weichai, etc.),  and optional three-level filters based on environment. Lower failure rate, higher power,  meets different emission levels such as National II, III, IV, and Euro V.

5. Operation system: Equipped with advanced hydraulic and electronic control systems, it achieves precise control over the bucket's lifting, tilting, and traveling movements. The instrument panel inside the cab is clear and easy to read, and the operating levers are convenient and user-friendly, reducing operational difficulty and fatigue.

Product Data


ModelLR16
Bucket Capacity0.7m³
Rated Load1600kg
Overall Dimension5900*1860*2830mm
Max. Dumping Height3200mm
Engine ModelYUNNEI 490
Rated Power/Speed37kw

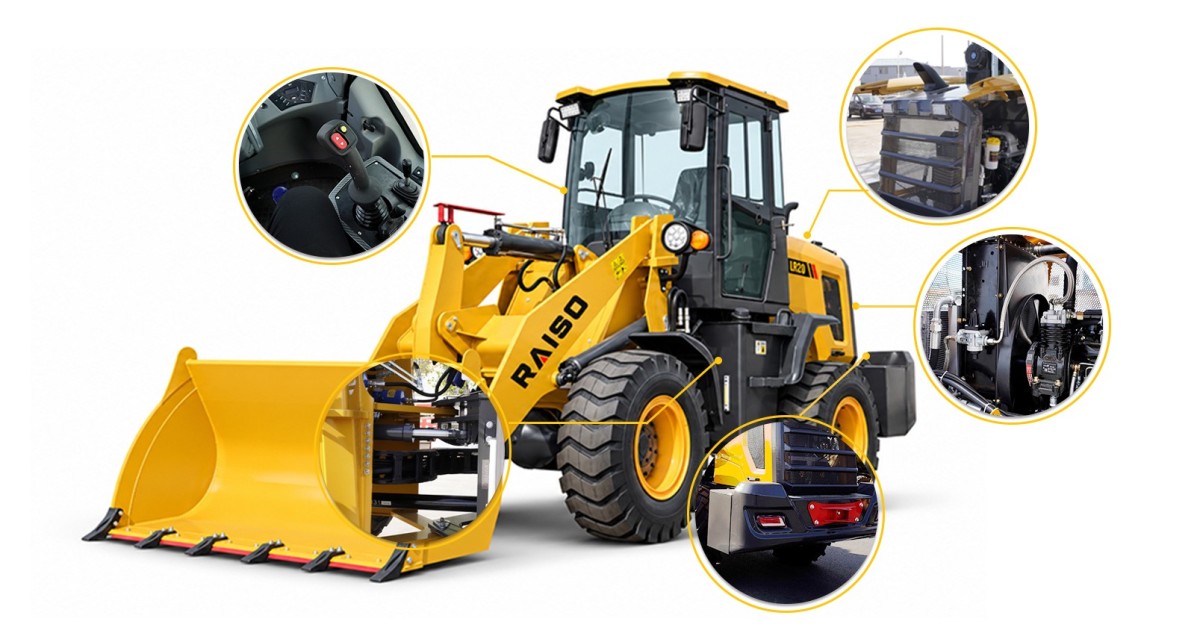

Product Details

LR16


We focus on engineering fundamentals — material strength, system matching, and assembly precision.

Heavy-Duty Structure
The boom and bucket are manufactured from high-strength manganese steel, providing excellent wear resistance and deformation resistance. Reinforced stress points ensure durability even under harsh underground or construction conditions.

Reliable Hydraulic System
Self-developed chrome-plated cylinders improve impact resistance and longevity. Customized pumps combined with premium Eaton valves ensure smooth, precise control and longer service life.

Balanced Transmission System
Equipped with high-quality axles and optional Hangzhou YD13 gearbox, the machine delivers stable and efficient power transmission without unnecessary strain on components.

Flexible Power Options
We offer renowned engine brands including Yuchai, Cummins, and Weichai. Optional three-stage filtration protects the engine in dusty environments.
The loader meets various emission standards such as National II, III, IV, and Euro V, making it suitable for multiple markets.

Operator-Centered Design
Advanced hydraulic and electronic control systems allow precise bucket lifting and tilting.
Clear dashboard layout and ergonomic control levers reduce fatigue and improve daily working efficiency.


Production Feature

1. Superior Durability & Finish

Advanced Corrosion Resistance: All structural components—including the cab, rear hood, and counterweight—undergo a dual-process electrophoresis treatment followed by electrostatic spraying. This ensures a high-gloss finish and industry-leading anti-rust protection.

Precision Engineering: Key structural pivot points undergo secondary boring to ensure perfect concentricity, reducing friction and significantly extending the lifespan of pins and bushings.

2. High-Performance Power & Control

Global Engine Support: Equipped with the reliable Weichai Stage II engine, offering a balance of high torque and fuel efficiency, backed by an extensive global after-sales service network.

Automatic Bucket Leveling: The bucket is engineered to remain level automatically throughout the lifting cycle, preventing material spillage and improving operational efficiency.

Premium Hydraulics: Outfitted with high-precision gear pumps and steering systems to ensure smooth, responsive handling under heavy loads.

3. Operator Safety & Comfort

ROPS/FOPS Ready Design: Featuring a robust anti-roll structural design, making the machine safe for use in demanding construction, quarrying, and mining environments.

Refined Detailing: Built with a "zero-compromise" approach, featuring patented shock-absorption pads, German-standard wiring harnesses, and custom-heavy-duty radiators to minimize downtime.


Mechanical attachments
